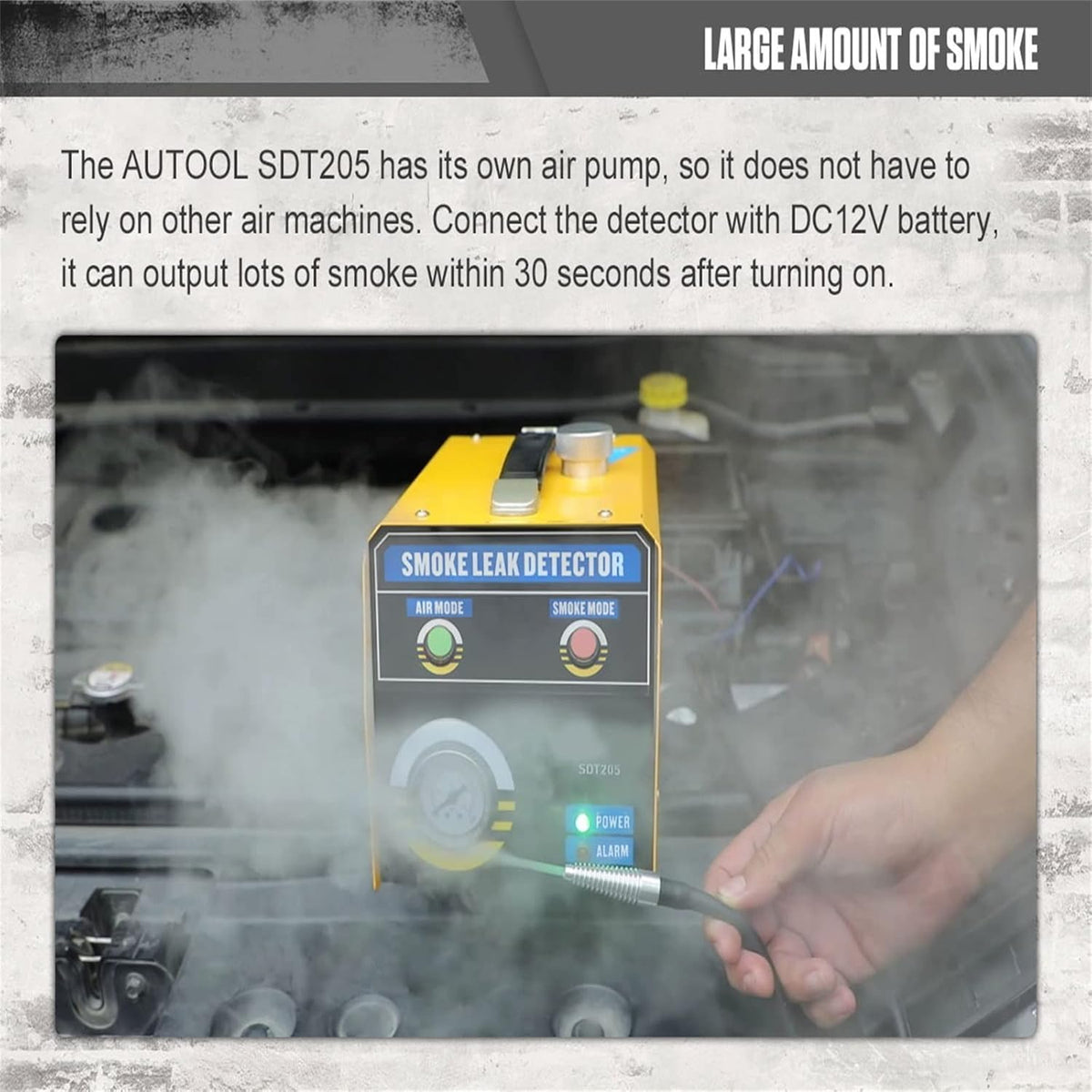

Automotive Smoke Machine EVAP Leak Tester with Pressure Gauge V4643
Sale price
$32.50
Regular price $131.94
Skip to product information
【Why Need It】For example, when the intake pipe of a car leaks, the symptoms that will appear are engine weakness, increased exhaust nitrogen oxide emissions, and difficulty in starting. Since the engine needs a higher concentration of combustible mixture during the starting process, and the leakage of the intake pipe causes the lean combustible mixture, it will cause difficulty in starting the engine. Therefore, the car range hood is an essential tool for every car owner.
【Air Mode】Built-in air pump,When the air pressure enters the pipeline, as the air pressure increases, if the pointer value of the pressure gauge continues to increase, it means that there is no leakage in the pipeline. When the air pressure increases but the pointer value of the pressure gauge continues to decrease, it is said that there is a leakage in the pipeline.
【Smoke Mode】Built-in air pump and smoke generator,Fill the pipe with smoke and check the pipe with a flashlight after 2 minutes. If there is a leak, it can be clearly seen under the light. The leak can be found faster
【EVAP Detection】American cars that began production in 1996 are equipped with EVAP service ports; in most American cars, the EVAP service port is usually located in the engine compartment, but the EVAP service port of some special models may be located in other locations. Open the plastic cover of the EVAP service port, then use the spool wrench to remove the check valve clockwise, then install the EVAP service port adapter, and introduce smoke from the port into the EVAP leak detection system.
【External pressure gauge】by observing the change of the pointer value of the pressure gauge, it is more accurate when the pipeline leaks. The built-in overheating protection device will automatically cut off the power if it exceeds the working limit (over 176°F). Better protect the machine from being damaged,Built-in air pump do not need to purchase additional.
Automotive Tools & Equipment Diagnostic, Test & Measurement Tools
Automotive Smoke Machine EVAP Leak Tester with Pressure Gauge V4643
Sale price
$32.50
Regular price $131.94
Shipping calculated at checkout.
【Why Need It】For example, when the intake pipe of a car leaks, the symptoms that will appear are engine weakness, increased exhaust nitrogen oxide emissions, and difficulty in starting. Since the engine needs a higher concentration of combustible mixture during the starting process, and the leakage of the intake pipe causes the lean combustible mixture, it will cause difficulty in starting the engine. Therefore, the car range hood is an essential tool for every car owner.
【Air Mode】Built-in air pump,When the air pressure enters the pipeline, as the air pressure increases, if the pointer value of the pressure gauge continues to increase, it means that there is no leakage in the pipeline. When the air pressure increases but the pointer value of the pressure gauge continues to decrease, it is said that there is a leakage in the pipeline.

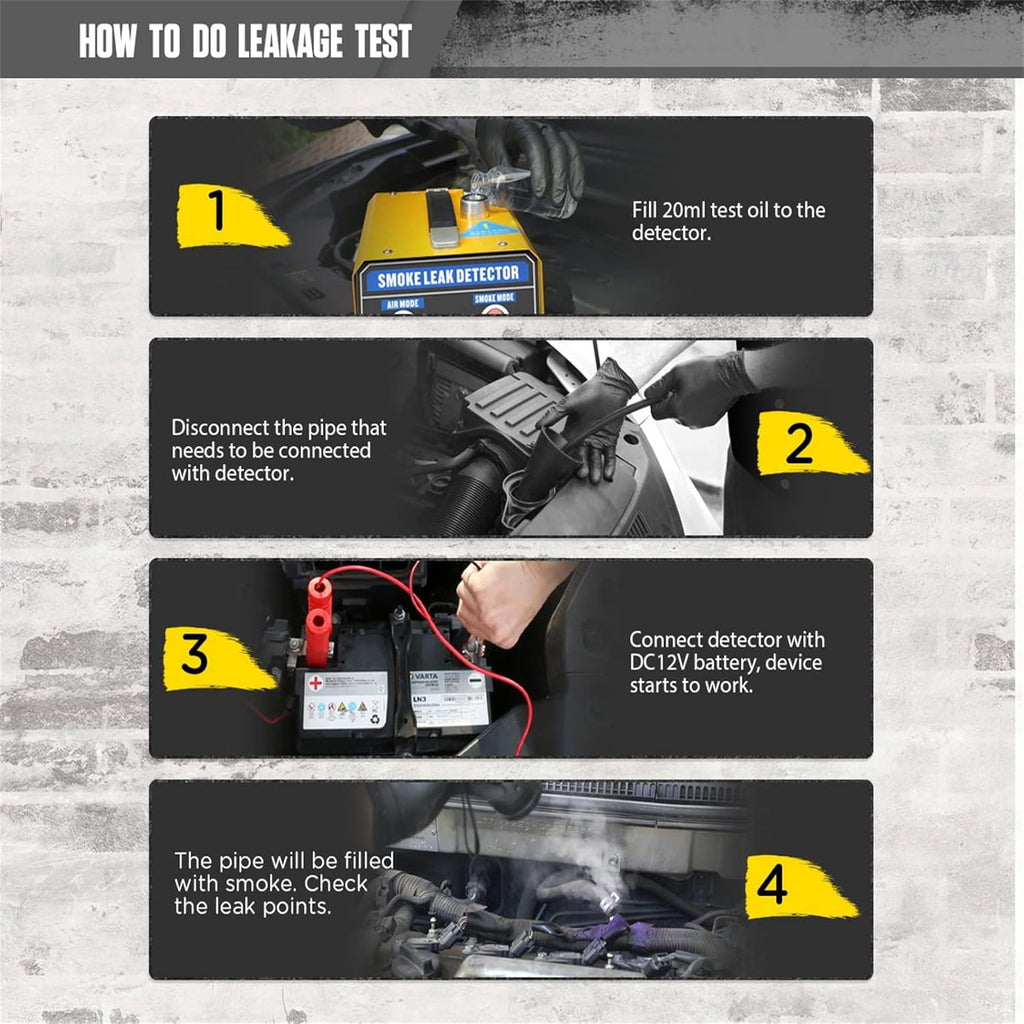

【Smoke Mode】Built-in air pump and smoke generator,Fill the pipe with smoke and check the pipe with a flashlight after 2 minutes. If there is a leak, it can be clearly seen under the light. The leak can be found faster

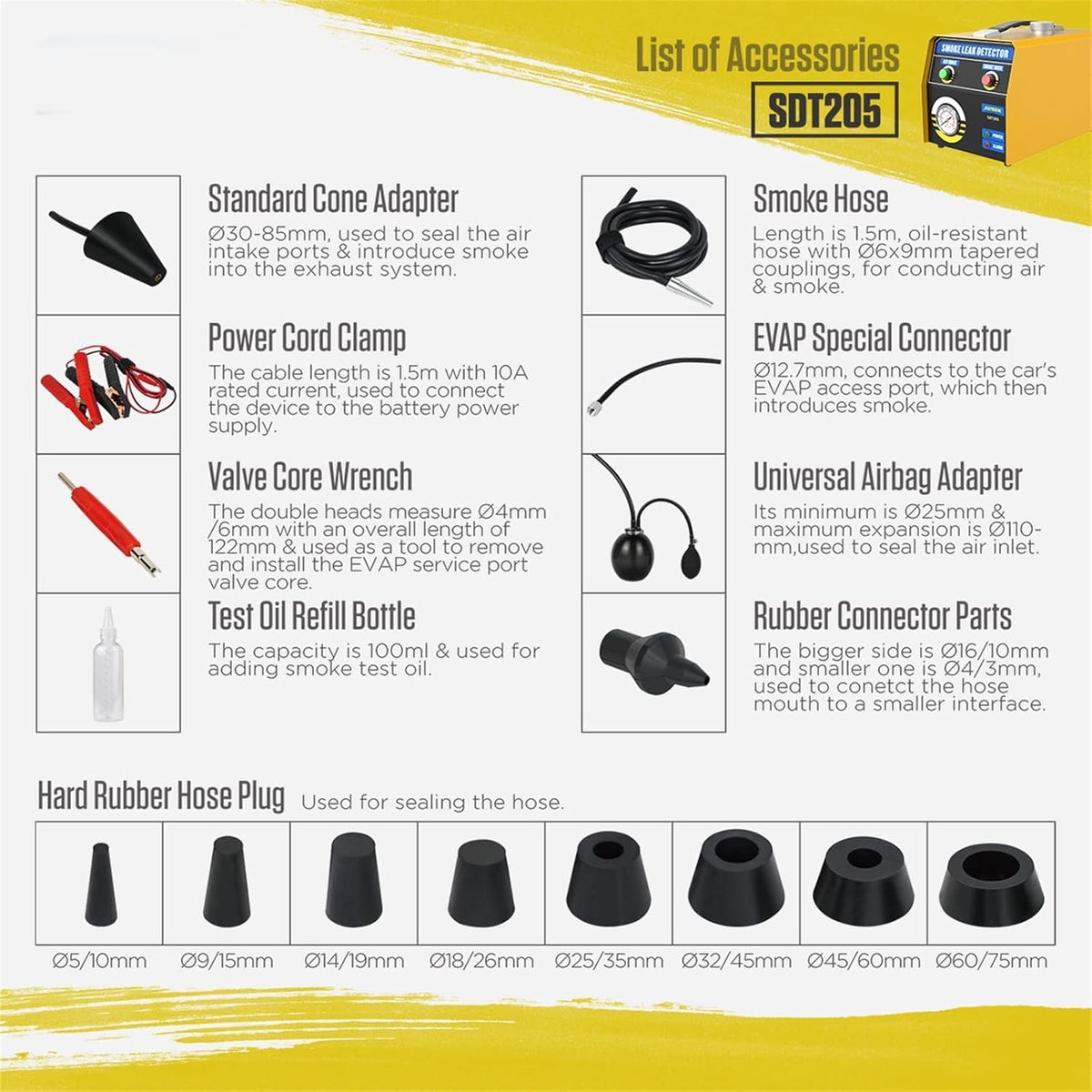

【EVAP Detection】American cars that began production in 1996 are equipped with EVAP service ports; in most American cars, the EVAP service port is usually located in the engine compartment, but the EVAP service port of some special models may be located in other locations. Open the plastic cover of the EVAP service port, then use the spool wrench to remove the check valve clockwise, then install the EVAP service port adapter, and introduce smoke from the port into the EVAP leak detection system.
【External pressure gauge】by observing the change of the pointer value of the pressure gauge, it is more accurate when the pipeline leaks. The built-in overheating protection device will automatically cut off the power if it exceeds the working limit (over 176°F). Better protect the machine from being damaged,Built-in air pump do not need to purchase additional.
| VKALTUL SDT 205 | VKALTUL SDT 205S | VKALTUL SDT 206 | VKALTUL SDT 202 | VKALTUL SDT 203 | |
|---|---|---|---|---|---|
| Output pressure | 15PSI | 15PSI | 12-18PSI | 10-13PSI | 0-17PSI |
| Overheating protector | ✓ | ✓ | ✓ | ✓ | ✓ |
| Smoke control switch | ✓ | ✓ | ✓ | ✓ | ✓ |
| Smoke outlet quick conector | ✓ | ✓ | ✓ | ✓ | ✓ |
| Pressure gauge | ✓ | ✓ | ✓ | ✓ | ✓ |
| Air flowmeter | ✓ | ✓ | |||
| Oil level gauge | ✓ | ✓ | |||
| Oil drain outlet & Alarm indicator | ✓ | ✓ | ✓ | ||
| Split air supply system | ✓ | ✓ | ✓ | ||
| Independent switch control design | ✓ | ✓ | ✓ |
