36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump Z9792
Sale price
$39.90
Regular price $420.00
Skip to product information
36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump Z9792
Sale price
$39.90
Regular price $420.00
Shipping calculated at checkout.

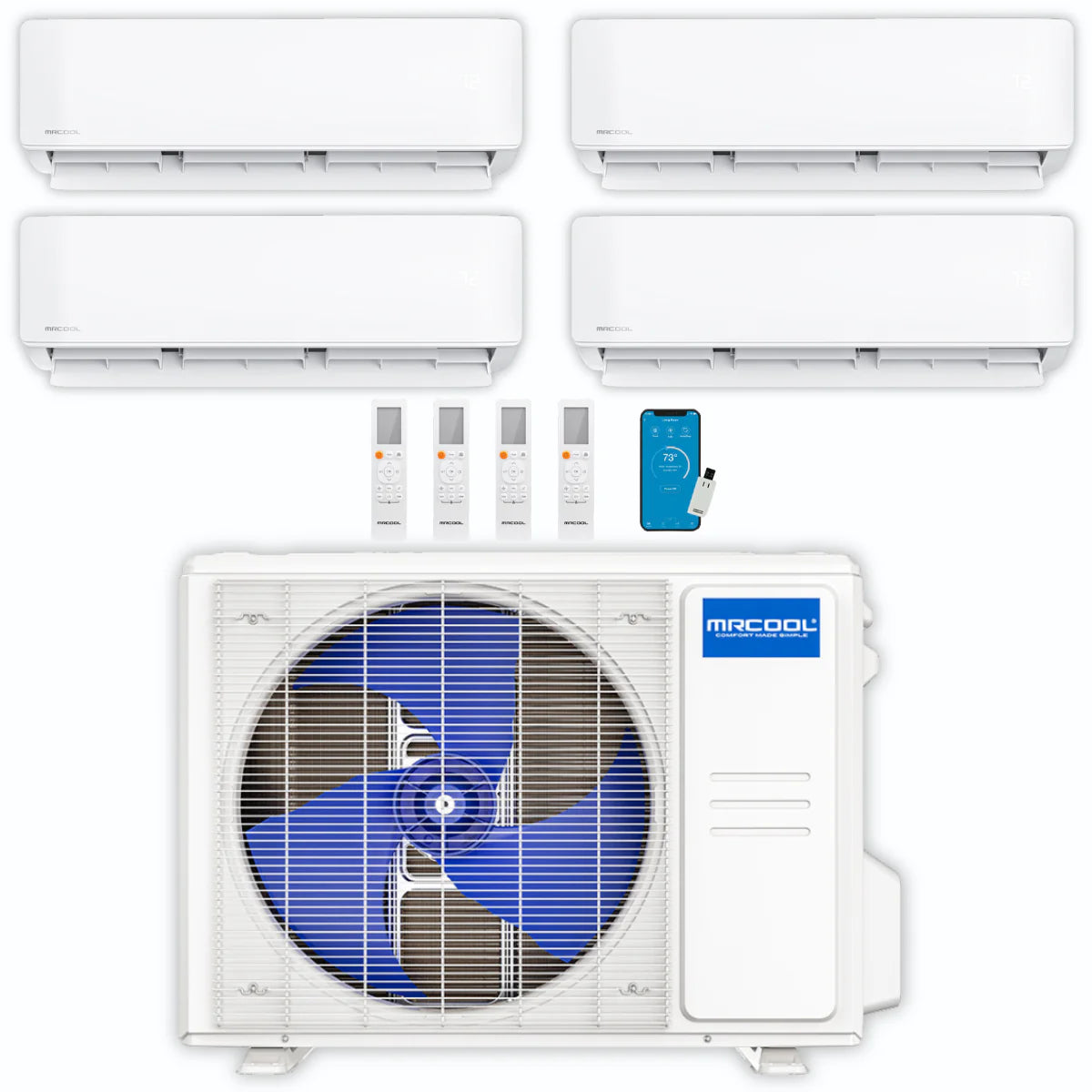

This 4th Generation MRCOOL Mini Split includes a DIY 36,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handler, and four Remotes. The best part about all of this is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi-Zone 4-Zone 36K BTU Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x4)
This package does not include linesets, don't forgot to scroll up and add them!
Condenser
- Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13掳F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 4
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions | 37.24'W x 16.14'D x 31.89'H |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Zone Capacity | 4 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
| SEER | 21.5 |
| EER | 10.5 |
| Voltage | Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase) |
|
Registered Warranty |
7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57'W x 7.44'D x 11.69'H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity |
9,000 BTU |
| Registered Warranty |
5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
